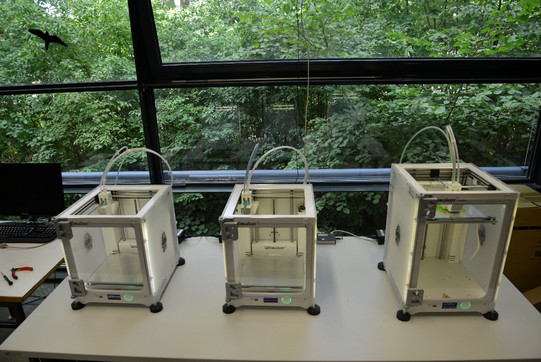

FDM-based 3D-Printers for thermoplastic materials (2x Ultimaker 3, 1x Ultimaker 3 Extended, 1x Creality Ender 5)

Machine type	Ultimaker 3 & Ultimaker 3 Extended
Manufacturer	Ultimaker
Technical Data
Technology	Fused Deposition Modeling/FDM
Print head	Dual extrusion print head with automatic nozzle lifting system and interchangeable print cores
Product dimensions	Ultimaker 3	Ultimaker 3 Extended
Left nozzle	215 x 215 x 200 mm	215 x 215 x 300 mm
Right nozzle	215 x 215 x 200 mm	215 x 215 x 300 mm
Dual material	197 x 215 x 200 mm	197 x 215 x 300 mm
Filament diameter	2.85 mm
Layer resolution	0.25 mm nozzle: 150 – 60 micron
	0.40 mm nozzle: 200 – 20 micron
	0.80 mm nozzle: 600 – 20 micron
XYZ accuracy	12.5, 12.5, 2.5 micron
Print head motion speed	30 – 300 mm/s
Print speed	< 24 mm³/s
Build plate	Heated glas build plate
Build plate temperature	20 – 100 ºC
Build plate leveling	Active leveling
Supported materials	Nylon, PLA, ABS, CPE, CPE+, PC, TPU 95A, PP, PVA, Breakaway
Nozzle diameters	0.25 mm, 0.40 mm, 0.80 mm
Nozzle temperature	80 – 280 ºC
Nozzle warm-up time	< 2 Min
Build plate warm-up time	< 4 Min (20 - > 60 ºC)
Operation noise	50 dBA
Material identification	Identification by NFC scanner
Connectivity	WLAN, LAN, USB
Supervision	Live camera
Dimensions and weight	Ultimaker 3	Ultimaker 3 Extended
Dimensions	342 x 380 x 389 mm	342 x 380 x 489 mm
Assembled dimensions (incl. Bowden tube and coil base)	342 x 505 x 588 mm	342 x 505 x 688 mm
Net weight	10,6 kg	11.3 kg
Performance requirements
Input	100 – 240V
	4A, 50 – 60Hz
	221 W max.
Output	24 V DC, 9.2 A
