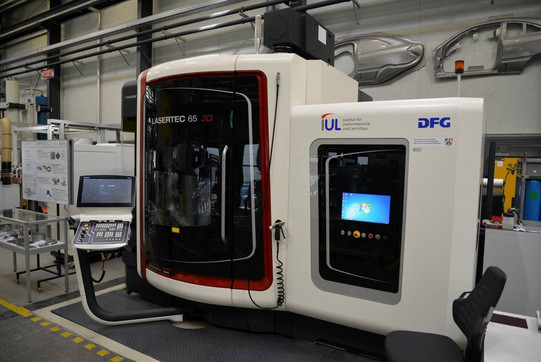

Combined 5-axis-machining and laser deposition welding center Lasertec 65 3D, Sauer GmbH/DMG MORI
| Technical data | |
| Machine | Universal LASERTEC 65 3D Machine in monoBLOCK |
| Manufacturer | DMG Mori |
| Travel range | X = 735 mm X = 650 mm Y = 650 mm Z = 560 mm |
| Spindle rotation speed | up to 10.000 1/min |
| Tool holder | HSK-A 63 |
| Drive power | 13 kW (40% ED) - 9 kW (100% ED) |
| Spindle torque | 83 Nm (40% ED) - 57 Nm (100% ED) |
| Tool changer/magazine | program-controlled tool change into the work spindle Tool change device with vertical chain magazine basic integrated in machine cabin; separated from working space changer with double gripper (vertical) 30 magazine places HSK-A 63 (standard) |
| NC swivel rotary table Clamping surface C-axis | d 650 mm |
| Swivel angle A-axis... | |
| to the work spindle | + 120° from 0°-position (horizontal) |
| from the work spindle | - 120° from 0°-position (horizontal) |
| Input and display accuracy control | 0,001° |
| Max. table load | 600 kg |
| Max. workpiece dimensions | |
| Diameter (interference contour) | 840 mm |
| Diameter editable | 650 mm |
| Height | 500 mm |
| Cabin, chip tray | Full-protection cabin including roof with sliding door and large safety glass panels |
| In max. at 100% ED | 75 A |
| Power consumption at 100% ED | 52 kVA |
| Requested power fuse | 80 A / 400 V |
