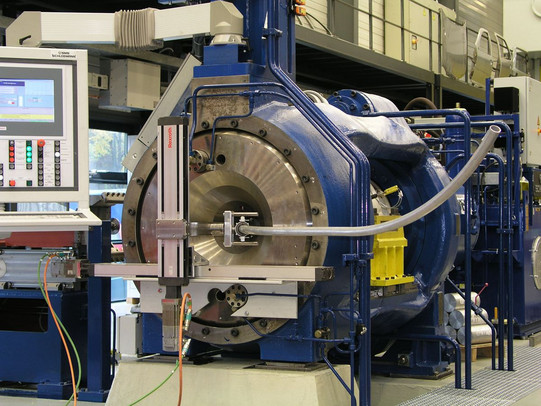

Extrusion press, 10 MN (direct), suitable for curved profile extrusion, SMS Meer
| Machine type | Strangpresse 10 MN (direkt) |
| Manufacturer | SMS Meer GmbH |
| built in | 2004 |
| Mechanical Data | |
| compressive force, nominal, at 285 bar | 10 MN |
| extrusion punch | |
| compressive force main piston | 9,88 MN |
| compressive force feed and retraction unit | 0,44 MN |
| compressive force total | 10,32 MN |
| retraction force | 0,21 MN |
| press stroke | 500 mm |
| pressing velocity, variable | ca. 0,1 - 10 mm/s |
| container | |
| container clamping force | 1,15 MN |
| retraction force | 0,78 MN |
| container stroke | 530 mm |
| hole diameter | 146 mm |
| container length | 350 mm |
| press block, hot | 250 - 300 mm |
| Shear | |
| discard shear | 0,35 MN |
| height above ground | ca. 3610 mm |
| circumscribing circle/tool package | |
| circumscribing circle diameter | max. 145 mm |
| tool package diameter | 400 mm |
| tool package height | 240 mm |
| rotary extruder | |
| cuvature radius | min. 720 mm |
| hydraulic data | |
| high pressure oil pump (1x), with | |
| operating pressure | max. 285 bar |
| conveyed volume | max. 175 l/min |
| conveyed volume | 132 kW |
| drive speed | 1500/min |
| engine model | B 35 |
| engine model | IP 55 |
| high pressure oil pump (1x) flange-mounted on drive shaft of the a.m. high pressure oil pump | |
| operating pressure | max. 285 bar |
| conveyed volume | max. 56 l/min |
| drive speed | 1500/min |
| pressure-maintaining pump (1x), with | |
| adjustable operating pressure | max. 315 bar |
| conveyed volume | max. 9 l/min |
| drive power | 5,5 kW |
| drive speed | 1500/min |
| engine model | V1 |
| engine protection | IP 54 |
| filter and cooling pump(1x), with | |
| operating pressure | 10 bar |
| conveyed volume | max. 90 l/min |
| drive power | 4 kW |
| drive speed | 1500/min |
| engine model | V1 |
| engine protection | IP 54 |
| filling valve (1x), with | |
| nominal size | DN 125 |
| oil tank (1x), with | |
| oil tank volume | ca. 2500 l |
| oil filter and cooling station (1x), with | |
| filtering unit | |
| cooling performance | |
| cooling water consumption (water inlet temperature max. 20 °C) | 3000 l/h |
| electrical data | |
| supply | |
| operating voltage | 3 x 400 V |
| frequency | 50 Hz |
| connected load | ca. 250 kW |
| control voltage | |
| engines | 3 x 400 V 50 Hz |
| engine switchboard | 230 V 50 Hz |
| PLC - control system | 230 V 50 Hz |
| limit switch | 24 VDC |
| rotary encoder | 24 VDC |
| solenoid valve | 24 VDC |
| control system | |
| Siemens S7 | |
| environmental conditions | |
| temperature | max. 40 °C |
| installation altitude | max. 1000 m above sea level |
| electrical equipment standard | |
| according to EN 60204 - 1, DIN IEC | |
| tools | |
| container | |
| 1 resistance heating zone | ca. 15 kW |
| container opening for block Ø (5,5") 139,7 +0/-2 | 146 mm |
| specific pressing force (10 MN) | ca. 597 N/mm² |
| container length | 350 mm |
| extrusion punch, dummy block | |
| for 146 mm container opening | |
