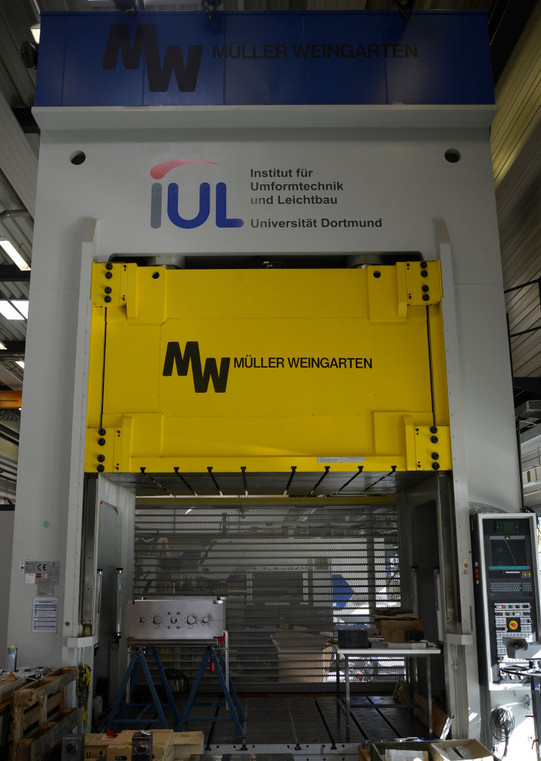

Hydraulic drawing press, 10 MN triple action, M+W BZE 1000-30.1.1
| Machine type | Hydraulic drawing press BZE 1000 - 30.1.1 |
| Manufactur | MÜLLER WEINGARTEN AG |
| technical data | |
| compressive force | max. 10000 kN |
| ram force | max. 6000 kN |
| blank holder pressure | max. 4000 kN |
| ram stroke | 1300 mm |
| blank holder adjustment | 400 mm |
| input velocity down/up | 500/135 mm/s |
| working velocity | 10 . 21 mm/s |
| drawing cushion force | max. 4000 kN |
| drawing cushion ejection force | 1000 kN |
| drawing cushion stroke | 400 mm |
| table dimensions | 3000 x 2000 mm |
| tooling weight | max. 30 t |
| upper tooling weight | max. 15 t |
